Best LED Under Cabinet Lighting 2018 (Reviews / Ratings)

Monica Kao  |  April 17, 2018  |  8 Min. Read

LED Lighting  |  Lighting  |  Under Cabinet Lighting

Start finding answers in our Resource Center full of Videos, Buying Guides and Checklists

Learn More

Under cabinet lighting along with recessed lighting is the most important lighting in your house. It provides functional task lighting for chopping veggies and other kitchen activities. You can also Leave under cabinet lighting on by itself for safety lighting.

In this article, you will learn about the importance of choosing the right quality of lighting, a brief history of LED and then the newest LED under cabinet lights as well as a comparison at the end.

LED-Lighting

What is Kelvin Temperature?

The picture above shows under cabinet lighting in your kitchen. There are tons of under cabinet lighting systems available today. We will look at the four best, but first, let’s look at LED lighting.

LED has evolved greatly over the years. Early LED products had a high Kelvin of 5,000, so they produced a fluorescent-like light and washed out the colors of your countertop.

Just as a very brief explanation, the Kelvin scale was designed to describe the effects of different types of light.

5000 degrees is similar to sunlight. You may think sunlight is good, but it washes the color out.  Ironically, you should use it in closets, because you will be able to distinguish navy blue and black colors better.

Short on time? Get our free Under Cabinet Lighting Buying GuideLearn More

At the other end of the spectrum is candlelight or 2500-2700 Kelvin. Candles and fire emit a yellowish glow.  You look softer in that type of lighting.  Incandescent lighting bests imitate a candle. It is also better for lighter colors.

Now LED is produced at 2700-3200 Kelvin, so it will accentuate the earth tones of your granite counters.

There are no standards or governing bodies in lighting, so look at the light before you buy it.

Under-Cabinet-LED-Lighting

LED Lighting

LED (Light Emitting Diodes) is a solid-state lamp using diodes as the source of light. The technology has been around since the 1980's and is 90% efficient. It compares favorably to incandescent lighting, invented in the 1880's but is only 10% efficient.

It's safe to say you should be using LED today. LED is more efficient, uses less electricity and emits far less heat.

LED’s are also cool to the touch, so it will not melt the peanut butter in your cabinets like an incandescent bulb (can heat to 350 degrees, which is the reason you cannot touch it).

A good quality LED lightbulb can also last for up to 50,000 hours versus 850 hours for an incandescent bulb. At 4 hours use per day you can expect over 23 years without replacing a bulb.

Kelvin-scale

Under Cabinet Lighting

Undercabinet lighting is a staple in most kitchens because it provides many different sources of light. It is task lighting for chopping vegetables and other activities on the counter.

Under-Cabinet-Lighting

Your backsplashes are highlighted better with under cabinet lights. You can also leave them on at night for safety as well. Have a look:

Under-Cabinet-Lighting

Let's look at the best LED undercabinet systems to consider.

Best LED Under Cabinet Lighting Products

Legrand Under Cabinet Lighting System

Legrand is a modular system, almost like the track. It allows you to move lights, sockets, Bluetooth speakers and ipad docking stations around.

The huge benefit is flexibility with outlets as part of the undercabinet system, but you do not have to cut your backsplash for electrical outlets.

adorne-Collection-Under-Cabinet-Lighting

Look at how clean the backsplashes are in the pictures. Way nicer. You can always charge your Apple ipad or iPhone as well.

adorne-Collection-Under-Cabinet-Lighting

American Lighting 3-Complete

Another 120V option you can look at is one of my favorite options!

American-Lighting-3-Complete-under-cabinet-led-lighting

You have 3 color temperatures in one fixture! Typically, the different Kelvin temperatures are better for different types and colors of granite. With American Lighting, you can match the light to your granite

Finish options come in white and bronze, you don’t have to worry about seeing the dots from the LED on your countertop.

There’s a full length extruded acrylic lens so you don’t see the diodes (or dots on your granite).

Pretty cool to have 3 different color options on one! They are available in strips.

  • 8” $62
  • 16” $83
  • 24” $105
  • 32” $126

Light Bars

GM Lighting - LARC6 Dimmable LED Linear Light Bar

The LARC6 bar lights have been a huge hit over the last couple of years. You will like the slim profile if you do not have a reveal under your cabinet.

GM-Lighting-LARC6-Dimmable-LED-Linear-Light-Bar

The LARC6 is also a 24 Volt system, so the light will not fade at the end of longer runs.

  • Warm White 3000K
  • 50,000-hour LED life
  • 24V system requires a remote transformer or driver
  • Slim 3/8” thickness
  • Dimmable with a rigid inline touch dimmer or with a dimmable power supply
  • Can be interconnected in series from one 24V power supply
  • Sizes available are 8” ($38), 16” ($58), 24”($74), or 32” ($106) white only
  • Plug in or hard wire Transformer/Driver sold separately and can range from $51-$180
  • Connectors and accessories sold separately

Can be hardwired and controlled from a wall switch or dimmer. There is also a plug-in version and dimmer/switch controls that can be added to the product directly.

The LARC6 light bar is available in 8", 16", 24" and 32" width. It is rated at 3,000 degrees Kelvin, adjustable and only 3/8 of an inch. Its 24V power emits 5 watts per foot. The strips can be joined together simply as well.

The tape may be easier to install, but these shielded bars illuminate evenly. They do not show dots like LED tape.

(We sell and ship LARC6 light bars - Contact us here)

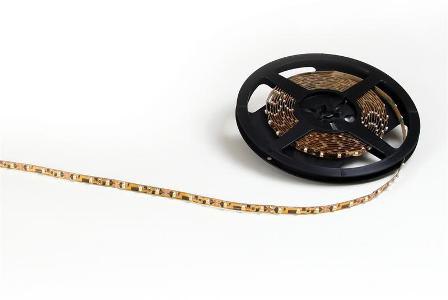

LED Flexible Ribbon (Tape)

GM Lighting- Flexible 12V LED Linear Ribbon

Tape lighting is best used for accent lighting, for example: if you have a glass cabinet it would be great to illuminate the cabinet with the tape lighting behind the hinges. The installation is simple and it bends around corners easier.

Tape lighting can also be used for under cabinet. The exposed tape will show the diodes or dots on your counter, unlike shielded light bars.

Channels for the tape lighting is also available.

LED-Flexible-Ribbon

  • Available in 2700K, 3000K, 3500K, and 4200K
  • Flexible LED ribbon comes in 39” strips as well as a cut-able 16ft run for any custom installation
  • Rated for 50,000 hours LED life
  • Only 1/8” thick
  • Available in standard and high output
  • Requires a plugin or hardwire transformer/driver
  • Dimmable with a dimmable power supply and low voltage magnetic on/off wall dimmer
  • 3M double stick mounting tape for easy installation
  • Also available for outdoor/wet location area
  • 39” Standard output $56, high output $86
  • 16ft Standard output $200, high output $350
  • Transformer/Driver can range from $51-$200

LED-Flexible-Ribbon

LED-Flexible-Ribbon

What could be easier than LED ribbon? You measure it. Cut it. Then attach it to the LED driver (also known as transformer). The ribbon is thin and unobtrusive for any type of cabinet, so all you see is light. Buy it with the appropriate Kelvin rating (many will still render blue) and with high output for proper illumination.

Once again (it is worth mentioning again) there is one minor downside. The ribbon is basically LED diodes ganged together. You can see those diodes on granite and marble surfaces at certain angles. They look like dots.

Another undercabinet lighting option you should consider is the WAC LED button lights. You would call them puck lights.

Over the last couple of years, I have had clients who like the pucks still. You can recess or mount a puck flush, unlike strips or tape.

These button lights are low voltage and will require a transformer.

Recessed-Lighting Recessed-Lighting-1

Surface-Mounted


         Recessed                                                                                           Surface Mounted
  • Power: 24V, 5W
  • CRI: 90
  • ELV Dimming: 100% - 5%
  • Rated Life: 100,000 hours
  • Cutout: 3 1/4" for recessed applications
  • Can be surface mounted or recessed
  • Super thin profile at 1/2"
  • Edge-lit LEDs reduce glare and assure even light distribution
  • Anti-microbial paint (white only)
  • Color options:
    • Black
    • Brushed Nickel
    • Dark Bronze
    • White
  • Color temperature
    • 2700K
    • 3000K

The one I have been waiting for to introduce is GM Lighting SlimEdge!

Just like the larc6 but the light is edge lit!

GM-Lighting-Slimedge

Slim Edge

Key Features:

  • Rigid modular edge lit lightbar
  • 0-90° with optional mounting clips
  • Mounting clips and screws included
  • Units join securely together with modular connectors
  • Dimmable
  • Class 2. Maximum run on a given lead is 16'
  • Finishes-bronze or white

Electrical:

  • 24VDC remote power supply required
  • Rated at 3.5W per foot
  • 50,000 hr. operation

Optics:

  • Edge-lit technology results in diode-free imaging on polished surfaces
  • 90+ CRI
  • 2700K, 3000K
  • Warranty:
    • 5-year warranty

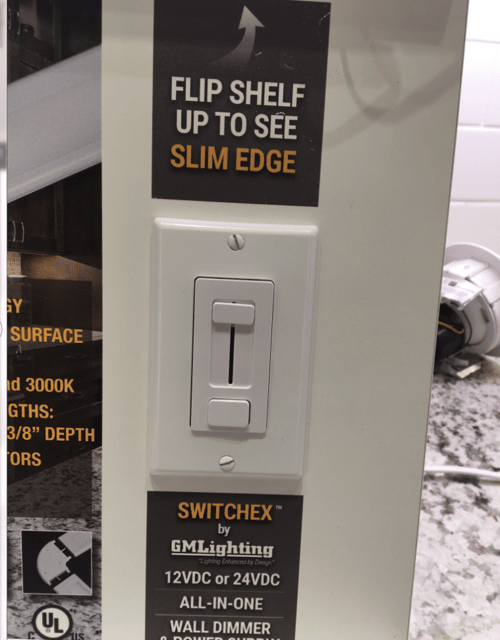

What is even more exciting and new is the switch EX LED wall dimmer by GM Lighting!

It is a driver (transformer) and dimmer all together, all that fits standard electrical boxes. This eliminates trying to figure out where to put the transformer, and not having to worry about what dimmer will work.

SwitchEX-LED-Wall-Dimmer

SwitchEX

Product-Diagram

Key Features:

  • All in one power supply and wall dimmer
  • Eliminates compatibility issues found in other dimmers
  • Fits in standard recessed electrical box
  • 100% - 1% smooth dimming
  • No minimum load
  • Single pole preset dimmer with on/off sliding switch
  • Adjustable voltage output dial
  • Includes a voltage barrier partition that enables installation of high and low voltage circuit in the same box
  • No de-rating required when ganging units
  • Power failure memory
  • Includes Gloss White, Gloss Light Almond and Gloss Dark Brown faceplates. Trim plate by others.
  • Warranty:
    • 5-year warranty

Which is Best?

These are great options for undercabinet lights and are great for task lighting. You would need to choose the appropriate one depending on what is right for your home. A couple of considerations:

  • If you are replacing - if you are old lights that are installed has a 120V direct wire, it may be best to go with the American Lighting 3-Complete. Since the wires are already there, it would be much easier to replace the fixture with one that is direct wire.
  • If it’s a new construction or a remodel - I would recommend the LARC6 bars or the new slim edge, flexible ribbon or even the Legrand under the cabinet. The LARC6 and the slim edge will provide more lighting than the LED strip lighting. 24 volts would be better for longer runs.

Aesthetically, the Legrand is the best option, because you do not have to cut outlets on your backsplash.
